N60_4-inch full keyboard three-proof handheld scanning code PDA
Introduction

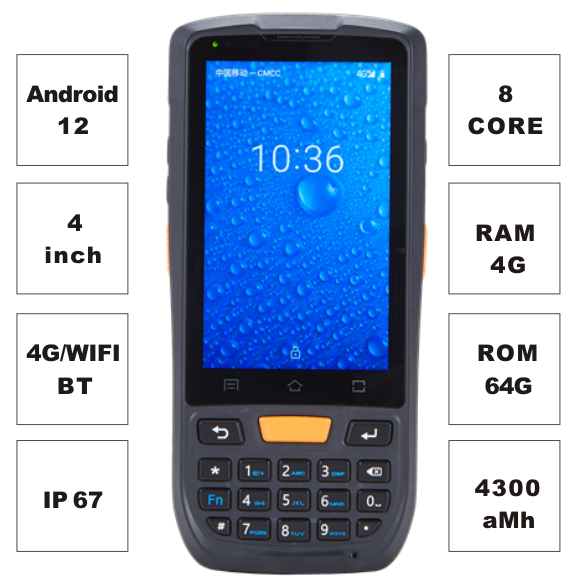

C-ReaderTEK N60 is a lightweight and portable high-performance mobile computer. With Android 12, octa-core processor, 4-inch touchscreen and 4300mAh removable battery, the excellent configuration delivers highly efficient operation. It supports barcode scanning, NFC, 8MP camera, multiple wireless connections, and features IP67 protection rating, 1.5 meters drop resistance. The mobile computer is thus widely applicable in various fields including warehousing, logistics, retail, finance, transportation, and manufacturing, helping users significantly improve work efficiency.
configuration is high performance and powerful
Equipped with an 8-core 2.0GHz high-speed processor, the multi-core architecture brings surging power, easily copes with the needs of multi-task parallel processing, and ensures smooth operation of the system without lag.
It can support a maximum of 8GB of running memory + 128GB of storage space combination, large applications can be easily run, and massive data storage can be worry-free, meeting the needs of commercial-level applications.
Optional RFID reading and writing, temperature measurement, vibration measurement, OCR, etc., with complete functions and strong scalabilityn)

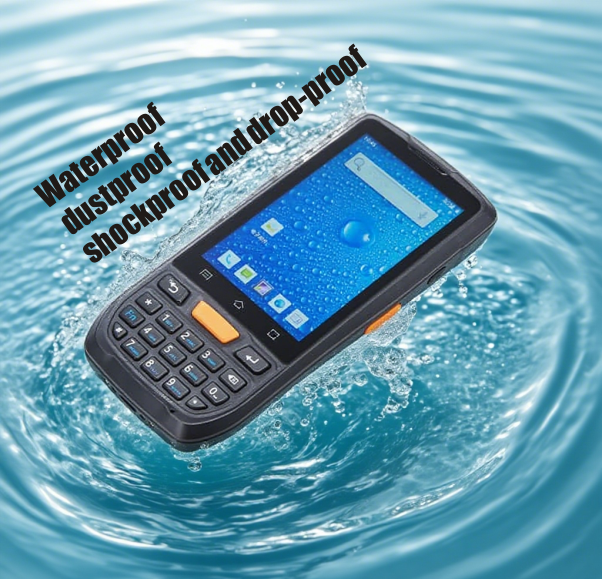

Three-proof design adapts to various scenarios
Military-grade protection: Adopts one-piece high-strength shell, which is resistant to falling and impact, durable and adaptable to harsh working environments
Corning Gorilla Protective Screen: High-hardness scratch-resistant glass, wear-resistant and impact-resistant, and remains clear as new after long-term use.
All-weather operation experience: Supports wet hands and gloves touch, and can still operate accurately in rainy days or low temperature environments, without accidental touch or delay
IP66 dustproof and waterproof: Completely dustproof, can withstand immersion in 1 meter deep water for 30 minutes, fearless of harsh environments, and adaptable to warehousing, logistics, outdoor inspections and other scenes.

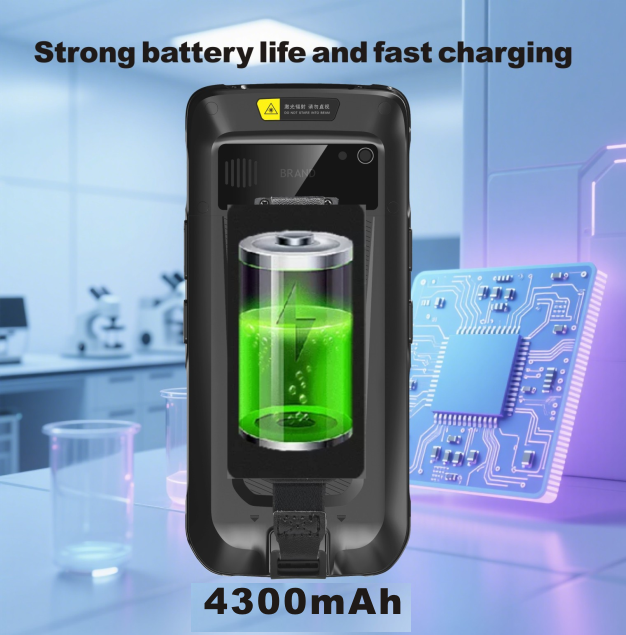

Removable battery for worry-free battery life
4300mAh large-capacity battery: uses 4.35V high-voltage lithium polymer cells, with higher energy density and longer battery life, meeting the needs of high-intensity operations and stress-free use all day.
Removable design: supports hot-swappable battery replacement without shutting down and waiting, suitable for continuous operation scenarios to ensure uninterrupted work.
Pump Express+ fast charging technology: fully charged in 2.5 hours, charging in 30 minutes can meet several hours of work needs, greatly improving efficiency.
Intelligent power consumption management: optimize system energy consumption, with high-performance and low-power chips, extend the use time of a single charge, and reduce the trouble of frequent charging.

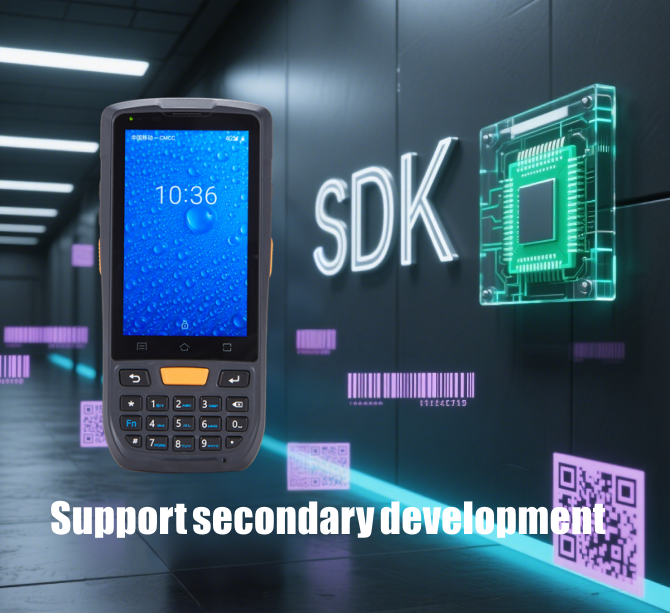

Secondary development, open and compatible
Full-featured SDK support: Provides a standardized secondary development kit (SDK) based on JAVA, covering core interfaces such as hardware call, data collection, and communication protocol, to help you quickly customize functions.
Seamless system docking: Deeply open the underlying capabilities of the device, support efficient integration with various business systems such as ERP, WMS, MES, etc., to meet the personalized management needs of enterprises.
Perfect technical guarantee: professional development documents + sample code + online technical support, 7×24 hours response, to ensure efficient and worry-free development process.
Continuous iterative updates: SDK continues to optimize with mainstream technology trends, regularly releases new function modules, and extends the technical life cycle of equipment
Performance parameters | |
CPU | 8-core 2.0 GHz |
OS | Android 9.0 (optional Android 12.0) |
Memory | 2GB RAM + 16GB ROM (optional 3 + 32G/4 + 64G) |
Supports up to 128G memory expansion | |
Physical parameters | |
Size | 157 (H) * 73 (W) * 21.6 (T) mm (26mm at the wharf) |
Weight | 260 G (including battery, weight varies with different configurations) |
Display screen | 4-inch IPS color display with 480 * 800 resolution |
Touch screen | Multi-touch support; the screen can be operated with water or gloves |
Backlight | Led backlight |
Battery | Removable lithium-ion polymer battery, capacity: 4300mAh; 3.8 V normal use time: more than 12 hours, standby time: 300 hours |
Card slot | Standard SIM card X 1, TF card X 1 |
Communication interface | Type-C USB X 1 with OTG support |
Network connection | 4G/3G/2G、Wi-Fi、GPRS |
Notification method | Prompt tone; Vibration |
Virtual key | Back、Home、Menu |
Audio | Microphone, speaker, earpiece |
Press the key | Power button, volume +/-button,Scan key * 3, waterproof keyboard |
Sensor | Gravity sensor, light sensor, distance sensor, vibration motor |
Power adapter | Charging time 3-4 hours, use standard power adapter and data cable to support optional fast charging, fast charging for 2.5 hours |
Use environment | |
Operating temperature | -15 ℃ to 60 ℃ |
Storage temperature | -40 ℃ to 70 ℃ |
Humidity | 5% to 95% (non-condensing) |
Drop specification | Within the operating temperature range, all six sides can withstand the impact of 30 drops from a height of 1.2 meters to the concrete floor. |
Rolling specifications | Continuous rolling for 1000 rounds of 0.5m, the contact surface of 6 surfaces still runs stably after rolling |
Vibration | Random (10 Hz to 30 KHz); 60 minutes per axis, 3 axes |
Electrostatic protection | +/-15 kV air discharge; +/-8kv contact |
Degree of protection | IP66 meets IEC sealing standard |
Wireless data communication | |
WWAN | Refer to product specification for details |
WIFI | WIFI frequency: 2.4 GHz & 5 GHz WIFI protocol: 802.11 a/B/G/n/AC protocol |
GPS | Beidou, Glonass, GPS, Galileo |
Bluetooth | Bluetooth 5.1 is supported |
LoRa | Optional |
Spectral analysis | Optional |
Data collection | |
Scan engine | CM 60/E20/SE4710/6603/5703 (as required) |
Support one-dimensional barcode type | UPC/EAN,Bookland EAN,UCC Coupon Code,ISSN EAN, Code 128,GS1-128,ISBT 128, |
Code 39,Trioptic Code 39, Code 32, Code 93, | |
Code 11, Interleaved 2 of 5,Discrete 2 of | |
5, Codabar, MSI, Chinese 2 of 5, Korean 3 of 5, Matrix 2 of 5, Inverse 1D, GS1 DataBar, Coposite Codes, etc. | |
Support 2D barcode type | PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode, QR Code,MicroQR,QR inverse,Aztec,Aztec Inverse, Postal Codes: US Postnet, US Planet,UK Postal, Australian Postal, Japan Postal, Netherlands KIX Code, USPS 4CB/One/Intelligent Mail, UPS FICS Pstal, etc. |
Cameras | Rear camera: 8MP |
Support autofocus, flash invisible code recognition (optional) | |
Internet of Things function | |
NFC (optional) | Operating band: 13.56 MHz |
Protocols supported: MifareClassic (MF1) NDEF, NfcV (15693), Ultraligh (MF0), IsoDep (quasi-CPU MF3), IsoDep (CPU) | |
Reading distance: 0-5cm (depending on card type) | |
LF RFID (Optional) | 125K/134.2K Read/Write |
UHF RFID (optional) | 0.5-8 m (depending on label, environment, module) |
Secure PSAM | Support ISO7816 standard and 2 PSAM cards |
Temperature measurement (optional) | Body temperature measurement, ± 0.1 ℃ error |
OCR (optional) | Support |
Vibration measurement (optional) | Support |
