N72S_ But-in UHF RFID Reader PDA

Short Description:

Boost efficiency with C-Readertek‘s rugged industrial scanners. Designed for logistics, retail & harsh environments. Features explosion-proof certification, 24hrs battery life, and customizable solutions....


  • Screen: 0.025m³
  • CPU: backhoe
  • RAM+ROM: 1235mm
  • OS: 380mm
  • Battery: 930mm
  • Size: 180mm
  • Weight: 2550mm

Product Detail

Product Parameters

Introduction

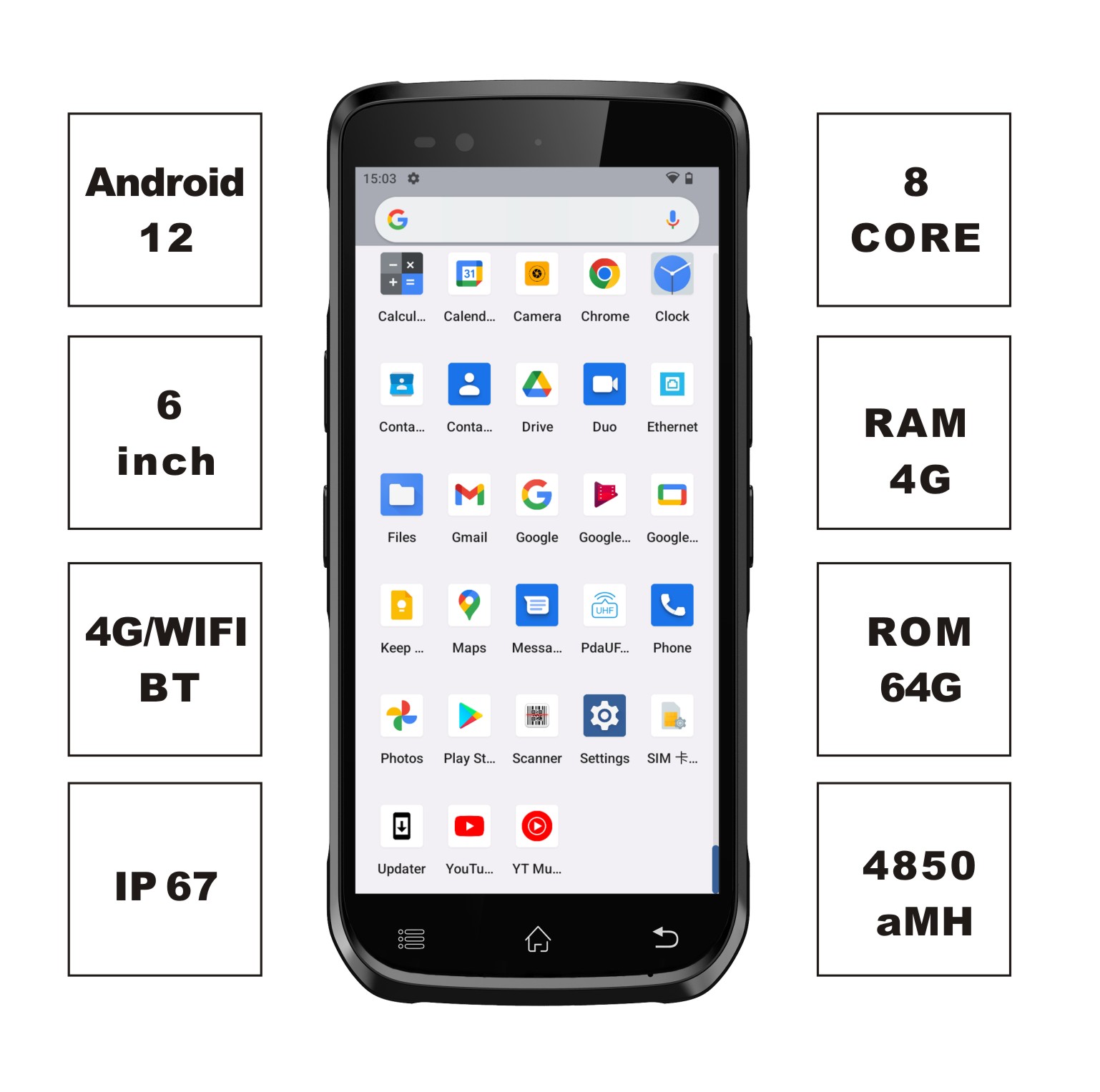

N72S is a newly designed mobile computer that combines high performance and rugged durability. It is equipped with Android 12 system and provides rich functional configuration options. It has a wide range of applications in industries such as logistics, warehouse management, retail and healthcare. The optional built-in 1D/2D barcode scanner can be used for inventory tracking, barcode medication management, patient identification and point-of-sale applications. With a 6-inch ultra-thin display and high-capacity battery, and support for 4G and dual-band WiFi, users can get a reliable experience both indoors and outdoors.


  configuration is high performance and powerful

Equipped with an 8-core 2.0GHz high-speed processor, the multi-core architecture brings surging power, easily copes with the needs of multi-task parallel processing, and ensures smooth operation of the system without lag.

It can support a maximum of 8GB of running memory + 128GB of storage space combination, large applications can be easily run, and massive data storage can be worry-free, meeting the needs of commercial-level applications.

Standard high-precision barcode/QR code scanning engine, 0.1 second ultra-fast recognition.Optional NFC near-field communication module, support contactless data interaction.Expanded RFID radio frequency identification function, realize batch label fast reading (optional configuration)


Three-proof design adapts to various scenarios

Military-grade protection: Adopts one-piece high-strength shell, which is resistant to falling and impact, durable and adaptable to harsh working environments

Corning Gorilla Protective Screen: High-hardness scratch-resistant glass, wear-resistant and impact-resistant, and remains clear as new after long-term use.

All-weather operation experience: Supports wet hands and gloves touch, and can still operate accurately in rainy days or low temperature environments, without accidental touch or delay

IP67 dustproof and waterproof: Completely dustproof, can withstand immersion in 1 meter deep water for 30 minutes, fearless of harsh environments, and adaptable to warehousing, logistics, outdoor inspections and other scenes.

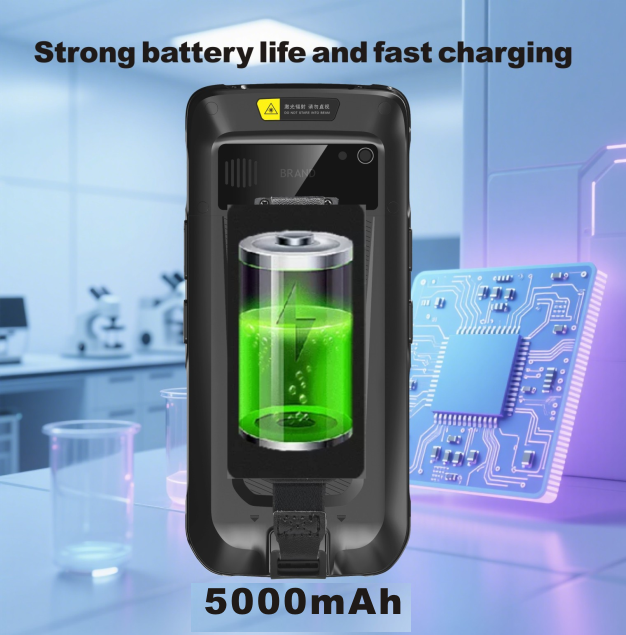

 N72S 电池.pngRemovable battery for worry-free battery life

5000mAh large-capacity battery: uses 4.35V high-voltage lithium polymer cells, with higher energy density and longer battery life, meeting the needs of high-intensity operations and stress-free use all day.

Removable design: supports hot-swappable battery replacement without shutting down and waiting, suitable for continuous operation scenarios to ensure uninterrupted work.

Pump Express+ fast charging technology: fully charged in 2.5 hours, charging in 30 minutes can meet several hours of work needs, greatly improving efficiency.

Intelligent power consumption management: optimize system energy consumption, with high-performance and low-power chips, extend the use time of a single charge, and reduce the trouble of frequent charging.



N73S SDK.jpgUHF RFID-Efficient Inventory, Redefine Asset Management!

Facing the problem of massive asset inventory, N72S UHF RFID is equipped with a high-performance RFID module, which supports long-distance multi-tag rapid identification, batch reading of 300+ tags in 1 second, and inventory efficiency increased by 10 times, with zero error. Industrial-grade drop-proof design, IP67 protection, no fear of complex environments such as warehouses and production lines; 8 hours of ultra-long battery life.

Whether it is logistics warehousing, retail inventory, or equipment inspection, N72S UHF RFID is based on accuracy, durability, and convenience to help you achieve digital management upgrades!




Performance parameters

CPU

8-core 2.0 GHz

OS

Android 12.0

Memory

4GB RAM + 64GB ROM (standard)


8GB RAM + 128GB ROM (optional)


Supports Micro SD (TF) up to 128 G expansion

Physical parameters

Size

173 (L) * 81 (W) * 24.8(T) mm

Weight

The whole machine is less than350g

screen

6.0 inch, resolution 720 * 1440support 1080*2160

Touch

Industrial Gorilla Five-Point Touch Screen

Backlight

Led backlight

Battery

Removable lithium-ion polymer battery, capacity: 5000mAh; 4.35 V normal use time: more than 8 hours, standby time: 300 hours

Card slot

Micro-SIM card * 1, TF card * 1

I/O

Type-C USB * 1 with OTG support

Network

4G/3G/2GWi-Fi

Notification

Sound, vibration

Audio

Microphone, speaker, earpiece

keybutton

Power button*1, volume +/-button, left / right scan buttonCustom buttons*2backspace*1Enter*1Scan*1

Power adapter

Charging time 3-4 hours, use standard power adapter and data cable to support optional fast charging, fast charging for 2.5 hours

Sensor

Gravity sensing, light sensing, distance sensing

PSAM

Support for 2 PSAM cards

Use environment

Operating temperature

-10 ℃ to 50 ℃

Storage temperature

-40 ℃ to 70 ℃

Humidity

5% to 95% (non-condensing)

Drop specification

Six sides and four corners can withstand a drop of 1.5 meters.

Rolling specifications

Continuous rolling of 1000 wheels for 0.5 m, and stable operation after rolling of 6 contact surfaces

Vibration

Random (10 Hz to 30 KHz); 60 minutes per axis, 3 axes

Electrostatic protection

+/-15 kV air discharge; +/-8kv contact

Degree of protection

IP67 meets IEC sealing standard

Wireless data communication

WWAN

Refer to product specification for details

WIFI

WIFI frequency: 2.4 GHz & 5 GHz

WIFI protocol: 802.11 a/B/G/n/AC protocol

GPS

Beidou, Glonass, GPS, Galileo

Bluetooth

Bluetooth 5.1 is supported

Data collection

Scan engine

QR code scanning engine, supporting Zebra, Horney and other brands

Support one-dimensional barcode type

UPC/EAN,Bookland EAN,UCC Coupon Code,ISSN EAN, Code 128,GS1-128,ISBT 128,


Code 39,Trioptic Code 39, Code 32, Code 93,


Code 11, Interleaved 2 of 5,Discrete 2 of


5, Codabar, MSI, Chinese 2 of 5, Korean 3 of 5, Matrix 2 of 5, Inverse 1D, GS1 DataBar, Coposite Codes, etc.

Supports 2D

Code type

PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode, QR Code,MicroQR,QR inverse,Aztec,Aztec Inverse,  Postal Codes: US Postnet, US Planet,UK Postal, Australian Postal, Japan Postal, Netherlands KIX Code, USPS 4CB/One/Intelligent Mail, UPS FICS Pstal, etc.

Cameras

Front camera: 5 megapixels
Rear camera: 13MP


Support autofocus and flash

RFID

NFC (optional)

Operating band: 13.56 MHz


Protocols supported: MifareClassic (MF1) NDEF, NfcV (15693), Ultraligh (MF0), IsoDep (quasi-CPU MF3), IsoDep (CPU)


Reading distance: 0-5cm (depending on card type)

UHF RFID

China frequency: 920-925Mhz


US frequency: 902-928Mhz


European frequency: 865-868Mhz


Protocol standard: EPC C1 GEN2/ISO18000-6C


Antenna parameters: ceramic antenna (3dbi)


Card reading distance: effective distance 2-25m according to different labels
